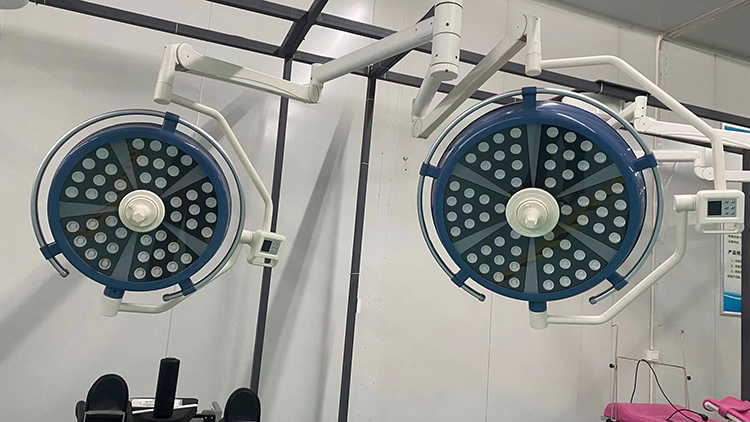

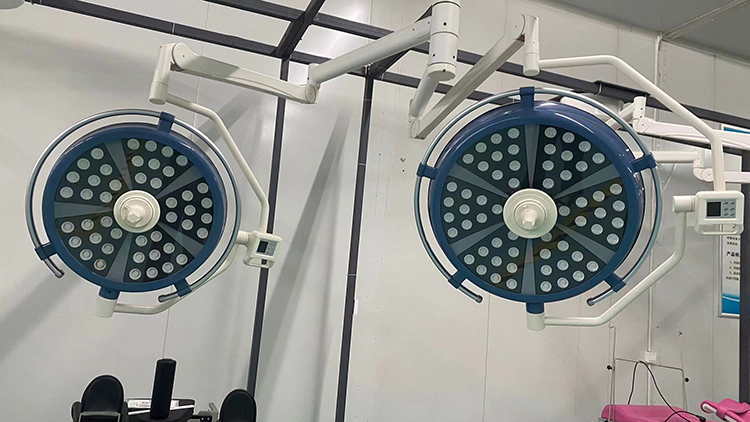

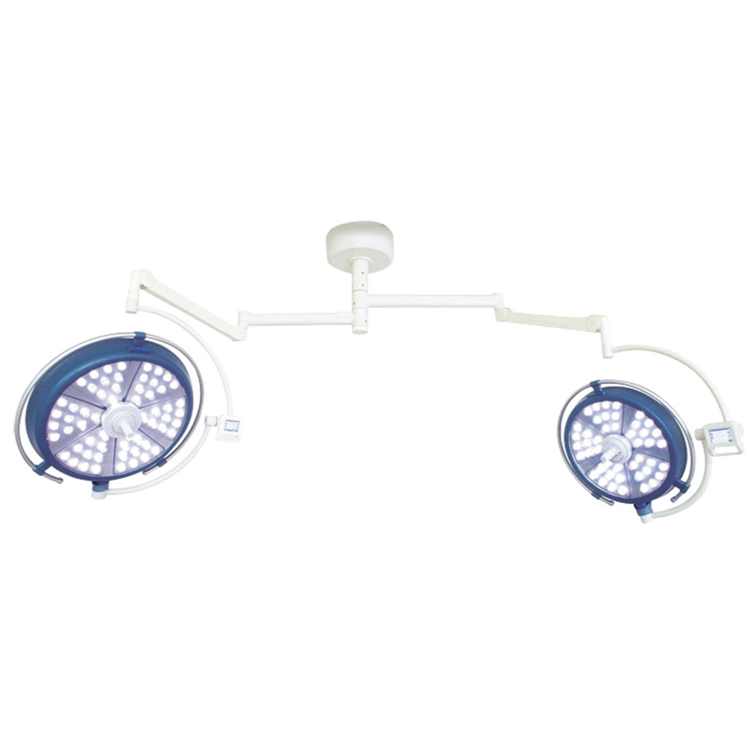

YDE 700/700LED surgical shadowless lamp (aluminum shell type)

Three modes: electric focus, manual focus, and fixed focus

Product advantages and features:

Color temperature adjustment: The lamp head is equipped with "Osram" LED beads with different color temperatures, and the color temperature can be adjusted between 3000K and 6700K while maintaining a color rendering index of 85; Thus achieving optimal organizational resolution.

Bright and uniform lighting: The light beam emitted by the LED light source is focused and converged into a light field that meets the surgical lighting requirements through a specially designed high-performance lens in the surgical area; The maximum illumination level can reach 160.000LUX. The brightness of the LED can be continuously controlled through digital means, and the illumination level of each lamp head can be adjusted separately;.

Extremely low failure rate: Each LED module contains 9-10 LED beads, each module has an independent electronic control system, and the lamp head has a very low failure rate. The failure of a single LED will not affect the function of the lamp head.

Convenient adjustment of focal length: Combined with an electric focusing system, it can achieve bright and uniform shadowless lighting effects, and can achieve maximum illumination within the range of spot adjustment. This not only meets the requirements of high illumination for large spot in open surgery, but also meets the requirements of high illumination for small spot in conventional window surgery;

Low heat generation: The greater advantage of LED is that it produces less heat because it emits almost no infrared or ultraviolet rays.

U average service life: The advantage of LED lamps over traditional halogen lamps or gas lamps lies in their long service life. Traditional lights usually need to be replaced after 600 to 5000 hours of use, and the average lifespan of LED lights is 100000 hours.

U Energy saving: Using 3W LED beads and 3D software to simulate the spatial position, achieving the established performance indicators with the minimum arrangement of LED beads;

The turbulence design that conforms to laminar flow allows the purified laminar air to easily move with the flow line of the surgical lamp, and allows the lamp head to maintain a better working temperature, effectively ensuring the service life of LED beads.

U original German "Odar" spring arm, six sets of universal joints, can move in all directions to meet various height and angle requirements of various surgeries, lightweight and flexible, precise and stable positioning.

U detachable handle jacket, can be disinfected at a high temperature of 135 ℃, and can operate the focusing, position, and angle of the lamp body;

Working environment conditions:

a) Environmental temperature+10-+40 ℃;

b) Relative humidity of 30% to 75%;

c) Atmospheric pressure (500-1060) hPa;

d) Power supply voltage and frequency AC 220V ± 22V 50HZ ± 10HZ;
